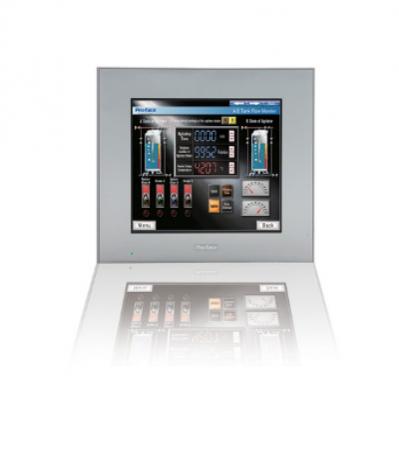

PROFACE PFX4401TADW

PROFACE PFXGP4401TADW

Product Brief Description

Type écran

  TFT Color LCD
Taille écran 7.5"
Résolution 640 x 480 pixels (VGA)
Taille réèlle d'affichage W153.7 x H115.8 mm [W6.05 x H4.56 in.]
Couleurs écran 65,536 Colors (No blink)/16,384 Colors (Blink)
Rétro-éclairage White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
Contrôle de luminosité 16 Levels (Adjusted with the touch panel or the software)
Durée de vie du rétro-éclairage 50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
Polices (langues) Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
Taille des caractères Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Taille des polices Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1
Texte8 x 8 pixels 80 char. x 60 rows
8 x 16 pixels 80 char. x 30 rows
16 x 16 pixels 40 char. x 30 rows
32 x 32 pixels 20 char. x 15 rows
Mémoire automateZone de variables SRAM 64 KB (Replaceable Lithium battery for backup memory)
Zone du programme logique FLASH EPROM 132 KB (Equivalent to 15,000 steps)*2
Mémoire application FLASH EPROM 32 MB (including a logic program area)
Sauvegarde de données SRAM 320 KB (Replaceable Lithium battery for backup memory)
Précision horloge ±65 sec/month (deviation at room temperature and power is OFF)*3
Type de dalle tactile Resistive Film (analog)
Résolution dalle tactile 1,024 x 1,024
Durée de vie dalle tactile 1,000,000 times or more
InterfacePort série (COM1) RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
Port série (COM2) RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)
Ethernet (LAN) IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
USB (TYPE-A) Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
USB (mini-B) Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
SD CARD SD Card Slot x 1
  1. Other font sizes can be set up with the Editor software.
  2. Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
  3. Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec/month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.
Haut de page

Spécifications Techniques générales

Normes de sécurité internationales
  • EU RoHS Directives

  • UL,cUL(508) Listed

  • CE

  • C-Tick

  • KC

  • Gost-R

Plage de tension nominale DC 24 V
Plage de tension en entrée DC 19.2 to 28.8 V
Variation de tension admise 5 ms or less
Consommation électrique 12 W or less
Courant d'appel 30 A or less
Tenue aux variations de tension AC 1,000 V, 20 mA for 1 min (between charging and FG terminals)
Resistance d'isolement DC 500 V, 10 MΩ or more (between charging and FG terminals)
Température ambiante 0 to 55 °C [32 to 131 °F]
Température (stockage) -20 to 60 °C [-4 to 140 °F]
Humidité ambiante 10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
Humidité (stockage) 10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
Poussière 0.1 mg/m³ (10-7 oz/ft³) or less (non-conductive levels)
Degré de pollution For use in Pollution Degree 2 environment
Atmosphère Free of corrosive gases
Pression d'air (plage d'altitude) 800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less)
Tenue aux vibrations IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s², X, Y, Z directions for 10 cycles (approx. 100 min)
Concussion Resistance IEC/EN61131-2 compliant 147 m/s², X, Y, Z directions for 3 times
Immunité au bruit Noise Voltage: 1,000 Vp-p, Pulse Duration: 1 µs, Rise Time: 1 ns (via noise simulator)
Tenue aux décharges électrostatiques Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3)
Mise à la masse Functional grounding: Grounding resistance of 100Ω, 2mm² (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
Structure IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)*4
Méthode de refroidissement Natural air circulation
Poids 1.2 kg [2.6 lb] or less (display unit only)
Dimensions externes W218 x H173 x D60 mm [W8.58 x H6.81 x D2.36 in.]
Dimensions pour découpe du panneau W204.5 x H159.5 mm [W8.05 x H6.28 in.], Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*5
  1. The front face of the GP unit, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification. Even though the GP unit's level of resistance is equivalent to these standards, oils that should have no ef
  2. Regarding dimensional tolerance, everything +1/-0 mm [+0.04/-0 in.] and R in angle are below R3 [R0.12 in.]. Even if the installation wall thickness is within the recommended range for the "Panel Cut Dimensions", depending on wall's material, size, and installation location of GP unit and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.
Haut de page
(Specification is inserted at this area. Don't delete this text.)

External Dimensions

GP4000 Series External Dimensions

Panel Cut-out

GP4000 Series Panel Cutout

External Dimensions with cables
