PFXGP 4501TADW

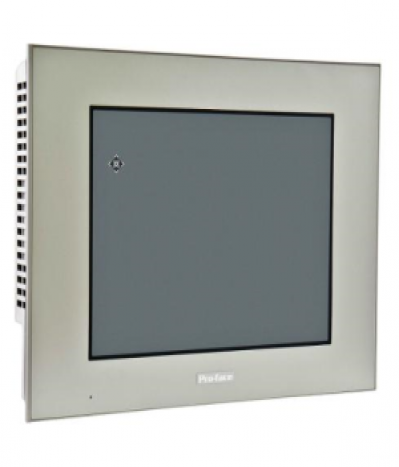

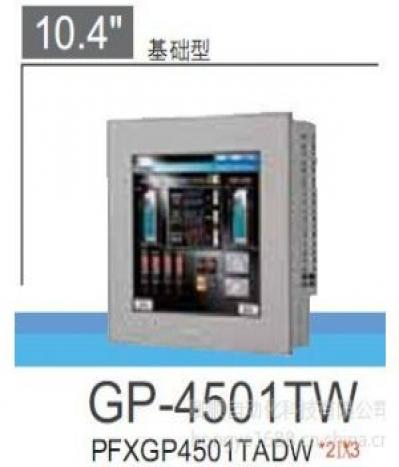

proface PFXGP4501TADW

Product Brief Description

Especificaciones funcionales

Tipo de Display TFT Color LCD
Tamaño del Display 10.4"
Resolución 640 x 480 pixels (VGA)
Effective Display Area W211.2 x H158.4 mm [W8.31 x H6.24 in.]
Display Colors 65,536 Colors (No blink)/16,384 Colors (Blink)
Backlight White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
Brightness Control 8 Levels (Adjusted with the touch panel or the software)
Vida de servicio 50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
Language Fonts Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
Character Sizes Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font Sizes Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1
Text8 x 8 pixel 80 char. x 60 rows
8 x 16 pixel 80 char. x 30 rows
16 x 16 pixel 40 char. x 30 rows
32 x 32 pixel 20 char. x 15 rows
Control MemoryVariable Area None
Logic Program Area FLASH EPROM 132 KB (Equivalent to 15,000 steps)*2
Memoria de la aplicación FLASH EPROM 16 MB (including a logic program area)
Backup datos SRAM 128 KB (Replaceable Lithium battery for backup memory)
Clock Accuracy ±65 sec/month (deviation at room temperature and power is OFF)*3
Tipo de panel táctil Resistive Film (analog)
Resolución del panel tácti 1,024 x 1,024
Vida de servicio panel táctil 1,000,000 times or more
InterfaceSerie(COM1) RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
Serie(COM2) RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)
Ethernet (LAN) IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
USB (TYPE-A) Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
USB (mini-B) Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
Lector-SD SD Card Slot x 1
  1. Other font sizes can be set up with the Editor software.
  2. Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
  3. Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec/month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.
Arriba pagina

General Specification

International Safety Standards
  • EU RoHS Directives

  • UL,cUL(508) Listed

  • CE

  • C-Tick

  • KC

  • Gost-R

Tensión de entrada nominal DC 24 V
Límites de tensión de entrada DC 19.2 to 28.8 V
Caída de tensión permitida 10 ms or less
Power Consumption 17 W or less
In-Rush Current 30 A or less
Voltage Endurance AC 1,000 V 20 mA for 1 min (between charging and FG terminals)
Insulation Resistance DC 500 V, 10 MΩ or more (between charging and FG terminals)
Temperatura del aire circundante 0 to 50 °C [32 to 122 °F]
Storage Temperature -20 to 60 °C [-4 to 140 °F]
Humedad ambiente 10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
Storage Humidity 10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
Dust 0.1 mg/m³ (10-7 oz/ft³) or less (non-conductive levels)
Grados de contaminación For use in Pollution Degree 2 environment
Atmosphere Free of corrosive gases
Presión del aire (rango de altitud) 800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less)
Resistencia de vibración IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s², X, Y, Z directions for 10 cycles (approx. 100 min)
Resistencia de conmoción IEC/EN61131-2 compliant 147 m/s², X, Y, Z directions for 3 times
Noise Immunity Noise Voltage: 1,000 Vp-p, Pulse Duration: 1 µs, Rise Time: 1 ns (via noise simulator)
Electrostatic Discharge Immunity Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3)
Grounding Functional grounding: Grounding resistance of 100Ω, 2mm² (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
Estructura IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)*4
Cooling Method Natural air circulation
Peso aprox. 2.5 kg [5.5 lb] or less (display unit only)
Dimensiones Externas W315x H241x D56 mm [W12.4 x H9.49 x D2.2 in.]
Dimensiones de corte W301.5 x H227.5 mm [W11.87 x H8.96 in.], Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*5
  1. The front face of the GP unit, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification. Even though the GP unit's level of resistance is equivalent to these standards, oils that should have no ef
  2. Regarding dimensional tolerance, everything +1/-0 mm [+0.04/-0 in.] and R in angle are below R3 [R0.12 in.]. Even if the installation wall thickness is within the recommended range for the "Panel Cut Dimensions", depending on wall's material, size, and installation location of GP unit and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.
