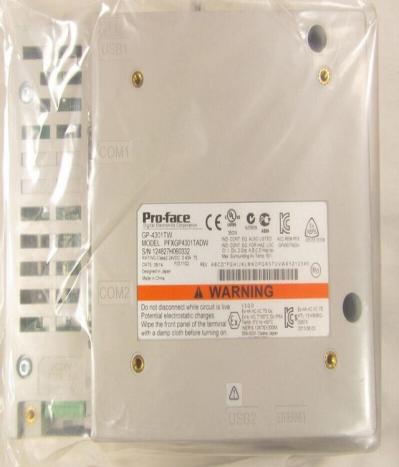

GP-4301TW

PROFACE GP-4301TW

Description
Catalogue

Product Brief Description

Family

HMI

Series

GP4000 Series

Size

Model

PFXGP4301TADW

Global Code

PFXGP4301TADW

Product Features

5" DC Analog

Repair Status

✔ (Repair service is available, reparable.)

Display specifications

Display type

TFT Color LCD

Display size

5.7"

Resolution

320 x 240 pixels (QVGA)

Effective display area

W115.2 x H86.4 mm [W4.54 x H3.40 in.]

Display colors

65,536 Colors (No blink) / 16,384 Colors (Blink)

Backlight

White LED (Not user replaceable. When replacement is required, contact your local distributor.)

Backlight service life

50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)

Brightness control

8 Levels (Adjusted with touch panel or software)

Touch panel type

Resistive Film (analog)

Touch panel resolution

1,024 x 1,024

Touchpanel lifetime

1,000,000 times or more

Language fonts

Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese and Simplified Chinese fonts are downloadable.)

Character sizes

Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts

Font sizes

Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.^*1

8 x 8 dots

40 char. x 30 rows

8 x 16 dots

40 char. x 15 rows

16 x 16 dots

20 char. x 15 rows

32 x 32 dots

10 char. x 7 rows

1Other font sizes can be set up with the Editor software.

Electrical specifications

Rated input voltage

24 Vdc

Input voltage limits

19.2 to 28.8 Vdc

Allowable voltage drop

5 ms or less

Power consumption

10.5 W or less

In-rush current

30 A or less

Voltage endurance

1,000 Vac, 20 mA for 1 minute (between charging and FG terminals)

Insulation resistance

500 Vdc, 10 MΩ or more (between charging and FG terminals)

Environmental specifications

International safety standards

Surrounding air temperature

0 to 50 °C [32 to 122 °F]

Storage temperature

-20 to +60 °C [-4 to 140 °F]

Ambient humidity

10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)

Storage humidity

10 to 90 % RH (Wet bulb temperature : 39 °C [102.2 °F] max. - no condensation)

Dust

0.1 mg/m³ (10^-7 oz/ft³) or less (non-conductive levels)

Pollution degree

For use in Pollution Degree 2 environment

Corrosive gases

Free of corrosive gases

Air pressure (altitude range)

800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)

Vibration resistance

IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
9 to 150 Hz fixed acceleration : 9.8 m/s²
X, Y, Z directions for 10 cycles (approx. 100 min.)

Concussion resistance

IEC/EN 61131-2 compliant 147 m/s², X, Y, Z directions for 3 times

Noise immunity

Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)

Electrostatic discharge immunity

Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3)

Memory

Application memory

FLASH EPROM 8 MB (including a logic program area）

Data backup

SRAM 128 KB (Rechargeable Lithium battery for backup memory)

Logic program area

FLASH EPROM 132 KB (Equivalent to 15,000 steps)^*2

Clock accuracy

±65 sec./month (deviation at room temperature and power is OFF)^*3

2Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.

3Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec./month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.

Interface specifications

Serial (COM1)

Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Parity: None, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115,200 bps, Connector: D-Sub9 (plug)

Serial (COM2)

Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Parity: None, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 to 115,200 bps, 187,500 bps (MPI), Connector: D-Sub9 (plug)

USB (Type A)

Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Output Current: 500 mA or less
Communication distance: 5 m [16.4 ft.] or less

USB (mini-B)

Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft] or less

Ethernet

IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1

Structural specifications

Grounding

Functional grounding: Grounding resistance of 100 Ω, 2mm² (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)

Cooling method

Natural air circulation

Structure

IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)^*4

External dimensions

W169.5 x H137 x D59.5 mm [W6.67 x H5.39 x D2.34 in.]

Panel cut-out dimensions

W156 x H123.5 mm [W6.14 x H4.86 in.]
Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]^*5

Weight

0.8 kg [1.77 lb] or less

4The front face of this product, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification.

5Regarding dimensional tolerance, everything +1/-0 mm [+0.04/-0 in.] and R in angle are below R3 [R0.12 in.]. Even if the installation wall thickness is within the recommended range for the "Panel Cut Dimensions", depending on wall's material, size, and installation location of GP unit and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.

Dimensions

External dimensions

Panel cut-out dimensions

External dimensions with cable
