Product Brief Description

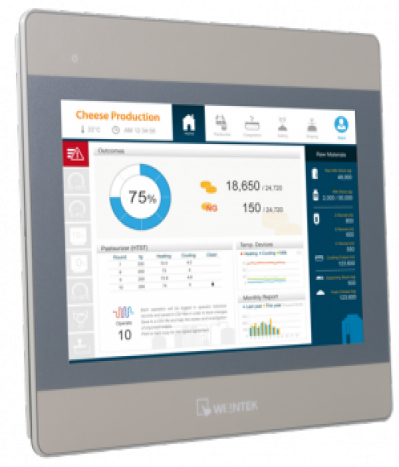

The new iE series of operator panels, made by Weintek, is one that follows the MT6000 and MT8000 series panels. It features a highly flexible customized exterior design, easy installation in embedded application, and dust-proof and waterproof flat cabinet. The iE Series offers a widescreen, full-color TFT screen with a diagonal of 10.2″, an LED back light, and touch screen controls. The high resolution screen can depict detailed visualizations of technological processes.

[Features]

•  10.2″ 1024 x 600 TFT-LCD, LED Backlight
• Slim design
• Fan-less Cooling System
• COM1 and COM3 [RS485]2W support MPI187.5K
• NEMA4/IP65 Compliant Front Panel
• PCB coating process ensures high reliability to resist from corrosive in harsh environment
• WiFi compatible with 802.11 b/g/n
• Built-in EasyAccess 2.0 license

[Environmental

Specification]

• Operating temperature: 32° ~ 122°F
• Storage temperature: -4° ~ 140°F
• Relative humidity: 10% ~ 90% @ 112°F (non-condensing)
• CE/FCC Complies with

EN 55022:2010
EN 55024:2010
EN 61000-3-2:2006+A2:2009
EN 61000-3-3: 2008
AS/NZS CISPR 22:2009+A1:201

Display

	Display	10" TFT
	Resolution	1024 x 600
	Aspect Ratio	16:9
	Brightness (cd/m2)	350
	Contrast Ratio	500:1
	Backlight Type	LED
	Backlight Life Time	50,000 hrs
Touch Panel	Type	4-wire resistive type
Memory	Storage (MB)	128
	RAM (MB)	128
	Processor	RISC Cortex-A8 600 MHz
I/O Port	SD Card Slot	N/A
	USB Host	USB 2.0
	USB Client	N/A
	Ethernet	10/100 Base-T
	COM Port	COM1(RS-232/RS-485 2W/4W), , COM3(RS-485 2W)
	WiFi	IEEE 802.11 b/g/n, WPA-PSK /WPA2-PSK Encryption
	RTC	Yes
Power	Input Power	24±20% VDC
	Power Consumption	650mA
	Panel Cutout(inch)	10.24 x 7.95
	Weight (lb)	2.20
