Weintek Colour LCD HMI with a large, bright display. Extract valuable data from inside the machine and show operators and maintenance technicians what is really happening. Simplify machine set-up and operation with interactive instructions and prompting. Reduce cost and effort to make changes and improvements to operator controls.
- Powerful Cortex A8 32-Bit RISC 600MHz processor
- Ultra slim design
- Built-in 128MB Flash and 128MB RAM
- PCB coating process to resist corrosion, providing high reliability in harsh environments
- COM2 and COM3 [RS485]2W support MPI 187.5K
- Built-in isolated RS-485
- Fan-less cooling system
- IP65 compliant front panel
- More than 250 drivers to connect with various controllers
Product Description
Weintek HMI 10" color TFT MT8101iE (compatible with Allen Bradley / Rockwell Automation PLC's) See below for a full list of compatible PLC's
We have been looking for a HMI that is quality built, fully compatible with all major PLC brands and all for a great price... not easy but we have found them, these are the newest Weintek line of Ethernet HMI's
Free programming software included
Features
- 10.1" 800 x 480 TFT LCD, LED Backlight
- Fan-less Cooling System
- COM2 and COM3 RS-485 support MPI 187.5K, please use one at one time
- PCB coating process ensures high reliability to resist from corrosion in harsh environment
- Built-in Power Isolation
- NEMA4 / IP65 Compliant Front Panel
Display ~ 10.1” TFT Resolution 800 x 480 Brightness (cd/m2 ) 300 Contrast Ratio 500:1 Backlight Type LED Backlight Life Time >30,000 hrs. Colors 262K
Memory ~ Flash 128 MB RAM 128 MB
I/O Port ~ USB Host USB 2.0 x 1 USB Client N/A Ethernet 10/100 Base-T x 1 COM Port COM1: RS-232 COM2: RS-485 2W/4W COM3: RS-485 2W

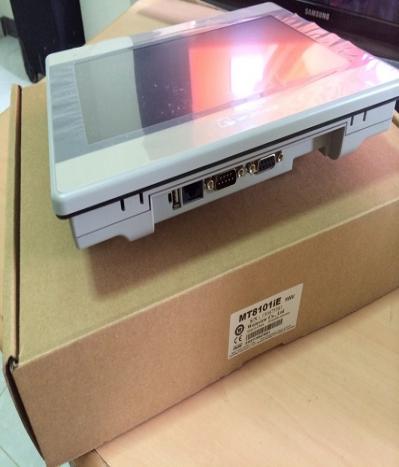

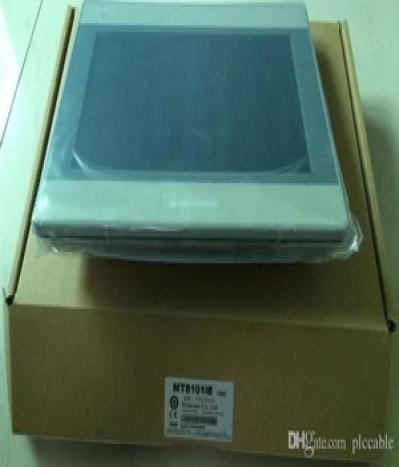

HMI MT8101iE
HMI dari weintek ukuran 10 inci
support all PLC
Connect RS232,RS485, ETHERNET
2 SERIAL PORT
1 PORT ETHERNET
Fitur utama dari panel operator (HMI) MT8101iE:
Tampilan: 10 "TFT LCD, layar lebar
Warna: 65536 warna maksimum
Resolusi: 800 x 480
Kecerahan permukaan: (cd / m2): 300
Contrast Ratio: 500: 1
matriks pencahayaan LED
Serial Interface: COM1: RS-232, COM2: RS-485 2w / 4w, COM3: RS-485 2w
1 USB 2.0 (Host)
1 port Ethernet (10/100 Base-T)
Processor: 32 bit RISC CPU / 600 MHz
Memory: 128 Mb RAM
Built-in time clock nyata
Power supply: + 24V, 400 mA @ = 24B
panel depan perlindungan: NEMA4 / IP65
Suhu operasi: 0 ~ + 50 ° C
Keterangan MT8101iE:
MT8101iE - menyentuh panel operator grafis (HMI) untuk otomatisasi sistem meningkatkan produktivitas dalam tubuh ultra tipis. Panel ini memiliki transfer data kecepatan tinggi dan rendering objek tampilan grafis interaktif. Protokol yang didukung Modbus TCP / IP, BACnet / IP dan MPI / koneksi PPI ke beberapa perangkat. panel PCB telah diperlakukan khusus untuk melindunginya dari kelembaban dan debu.
Konfigurasi panel operator (HMI) MT8101iE dengan menggunakan perangkat lunak bebas EasyBuilder Pro.
Download Katalog
