Product Brief Description

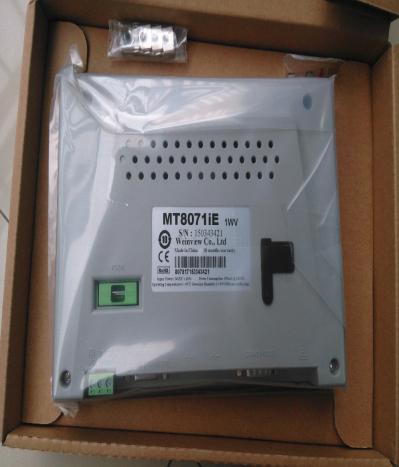

The new iE series of operator panels, made by Weintek, is one that follows the MT6000 and MT8000 series panels. It features a highly flexible customized exterior design, easy installation in embedded application, and dust-proof and waterproof flat cabinet. The iE Series offers a widescreen, full-color TFT screen with a diagonal of 7″, an LED back light, and touch screen controls. The high resolution screen can depict a detailed visualization of technological processes..

[Features]

[Environmental

Specification]

• Operating temperature: 32° ~ 122°F
• Storage temperature: -4° ~ 140°F
• Relative humidity: 10% ~ 90% @ 122°F (non-condensing)
• CE/FCC Complies with

  EN 55022:2010 Class B
  EN 55024:2010
  EN 61000-3-2:2006+A2:2009
  EN 61000-3-3: 2008
  AS/NZS CISPR 22:2009+A1:2010

  Display

  	Display	7" TFT
  	Resolution	800x480
  	Aspect Ratio	16:9
  	Brightness(cd/m2)	400
  	Contrast Ratio	500:1
  	Backlight Type	LED
  	Backlight Life Time	30,000 hrs
  Touch Panel	Type	4-wire resistive type
  Memory	Storage (MB)	128
  	RAM (MB)	128
  	Processor	RISC Cortex-A8 600 MHz
  I/O Port	SD Card Slot	N/A
  	USB Host	USB 2.0 x 1
  	USB Client	N/A
  	Ethernet	10/100 Base-T x 1
  	COM Port	COM1 RS-232, COM2(RS-485 2W/4W), COM3 (RS-485 2W)
  	Audio	N/A
  	RTC	Yes
  Power	Input Power	24±20% VDC
  	Power Consumption	450mA
  	Panel Cutout (inch)	7.56 x 5.43
  	Weight (lb)	1.32
