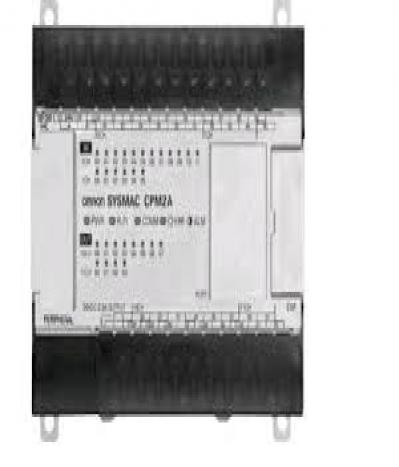

CPM2A

The CPM2A complements the CPM1A with additional sophisticated functions. Multiple high speed counters for high speed packaging applications. And analogue for many variable speed applications
Available in 20, 30, 40 & 60 I/O main units
120 I/O points max
Double the memory of the CPM1A
Real time clock/calendar and battery backed RAM
Programming and RS232C ports
Removable terminal strips
4k word capacity
2k word data memory
20kHz high speed counter
2 x 10kHz Pulsed outputs
Synchronized pulse input/output function
High speed interrupts
Replaces the discontinued CH PLC range
Advanced programming instruction PID/PWM/ACCEL/DECEL
Simultaneous connection of an Omron HMI and programming tool can be achieved using the additional RS232 port
Output Rating/Point: 2A @ 250Vac/24Vdc (except stock nos. 365-1156, 365-1184 and 365-1213 which are 0.3A @ 4.5 to 30Vdc)

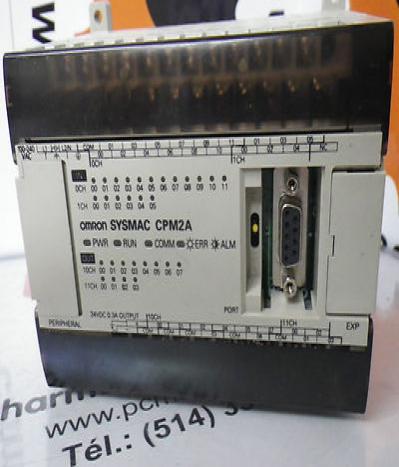

CPM2A

CPM2A adalah PLC (Programmable Logic Controller) compact terlaris keluaran OMRON.

Product ini sudah memiliki port RS-232 yang dapat dihubungkan ke komputer untuk programming maupun ke touch screen atau alat lainnya, dan juga port peripheral untuk dihubungkan ke console dan converter RS-232.

Walaupun kecil, fungsi PLC cukup memadai untuk mengontrol mesin-mesin sederhana, karena sudah dilengkapi dengan highspeed input dan high-speed output.

Type-type yang tersedia untuk seri ini antara lain:

CPM2A-20CDR-A — 20 point i/o (12 Input DC 24V, 8 output contact relay), power AC 220/110

CPM2A-30CDR-A– 30 point i/o (18 Input DC 24V, 12 output contact relay), power AC 220/110

CPM2A-40CDR-A– 40 point i/o (24 Input DC 24V, 16 output contact relay), power AC 220/110

CPM2A-60CDR-A– 60 point i/o (36 Input DC 24V, 24 output contact relay), power AC 220/110

Juga tersedia output transistor:

CPM2A-20CDT-D — 20 point i/o (12 Input DC 24V, 8 output Transistor), power DC 24V

CPM2A-30CDT-D– 30 point i/o (18 Input DC 24V, 12 output Transistor), power DC 24V

CPM2A-40CDT-D– 40 point i/o (24 Input DC 24V, 16 output Transistor), power DC 24V

CPM2A-60CDT-D– 60 point i/o (36 Input DC 24V, 24 output Transistor), power DC 24V

Model-model di atas mendukung output high-speed, biasanya digunakan untuk mengendalikan servo motor.

Seri CPM2A ini dapat menggunakan expansion unit dari CPM1/CPM1A
