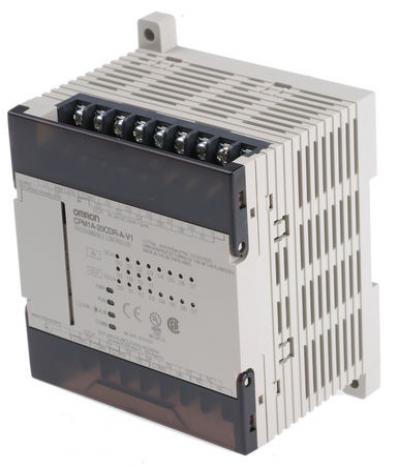

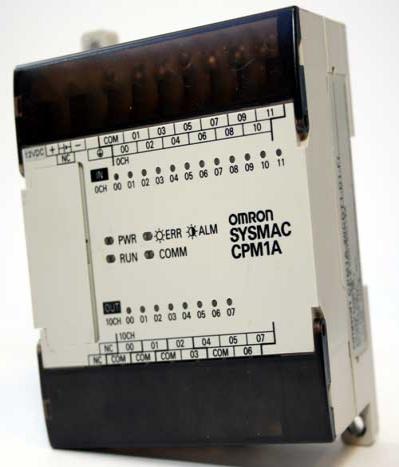

OMRON PLC CPM1A
The CPM1A is a compact micro PLC with removable terminal blocks ideally suited to small machine control and sequencing applications. Available in modules with 10 to 40 I/O points The micro sized CPM1A, 2A and 2C PLC family for all types of machine control where space is at a premium. Programmed using the CX-Programmer, CX-Programmer Junior software, Syswin Software or a handheld programming console. Programming port and optoisolated inputs Pulse I/O, digital and analogue expansion
CPM1A-10CDR-A
CPM1A-10CDR-D*
CPM1A-10CDT-D*
CPM1A-10CDT1-D*
CPM1A-20CDR-A
CPM1A-20CDR-D*
CPM1A-20CDT-D*
CPM1A-20CDT1-D*
CPM1A-20CAR-A*
CPM1A-30CDR-A
CPM1A-30CDR-D*
CPM1A-30CDT-D*
CPM1A-30CDT1-D*
CPM1A-32CAR-A*
CPM1A-30CDR-A
CPM1A-30CDR-D*
CPM1A-30CDT-D*
CPM1A-30CDT1-D*
Part Number
CPM1A-8ED*
CPM1A-8ER*
CPM1A-8ET*
CPM1A-8ET1*
CPM1A-20EDR*
CPM1A-20EDT*
CPM1A-20EDT1*
CPM1A-MAD01*
Part Number
CPM1A-CHIEVER-20D
CPM1A-CHIEVER-20A
Part Number
CPM1A-SRT21
Part Number
SYSWIN-CPM1-V3.3
WS02-CXPC1-EV1.1
Product Details
CPM1A-V1 CPU
30 and 40 I/O modules can be combined with up to 3 digital or 3 analogue expansion units to increase the system I/O to 100 points
Each analogue signal uses 16 points
Full HMI and PC connectivity
DIN rail/panel mount
Non volatile flash ROM memory
Variable Setting Control
1 x 5 kHz High Speed Counter
Individual digital input filters 1ms to 80ms
1024 data registers
128 timers/counters
Pulse output function
Replaces the CPM1 range
Output Rating/Point: 2A @ 250Vac/24Vdc (except stock nos. 432-9490, 432-9507, 432-9513 and 432-9535 which are 0.3A @ 24Vdc
Omron CPM1A / 2A / 2C Base Units
Interrupt processing, encoder connection and high speed counters
Password protection
CPM1A-chiever Kit
The ultimate starter kit! Whether you want to
evaluate the CPM1A or need one for your
application, this kit has everything that you
need to get started, including software!
Contents include:
•
CPM1A micro PLC with 20 I/O (DC IN/Relay
OUT) and AC or DC power supply
•
CPM1A-20CDR input simulator
•
RS-232C adapter
•
Program download cable
•
Programming software
•
CPM1A operation manual
•
CPM1A programming manual
•
Introduction to PLC guide
Temperature Sensor Module
Directly input RTD temperature signals into
your Micro PLC with the CPM1A-TS101-DA
temperature sensor module. This module
connects directly to the expansion port and
accepts 2 Pt 100 inputs with an input
temperature range of -40°C to 250°C. Other
RTD and thermocouple modules available.
Complete Small Scale Control
The popular CPM1A family of micro PLCs now includes models with AC
inputs. In one product family, you get cost- and space-efficient controllers
that handle AC input/relay outputs or DC inputs/transistor or relay outputs
with high speed performance and extensive expansion options.
The CPM1A's expanded product offering includes:
•
New AC input/relay output models
•
Numerous models manufactured in the U.S.A.
•
CPUs with 10, 20, 30, 32, or 40 point I/O densities
•
Expansion to 100 I/O
•
Built-in 5 kHz high-speed counter that supports increment mode or
phase differential encoder inputs at 2.5 kHz
•
Peripheral ports that are easily converted to RS-232C
ports for communications with PCs, other Omron PLCs,
or operator interface terminals
•
Analog modules, temperature sensor modules, and numerous
I/O expansion modules are available
Expansion I/O options
The CPM1A is small but your expansion options
are great. Choose among several modules with
options like:
•
Relay or transistor output models
•
8-point input expansion module
•
8-point output expansion module
•
20-point I/O expansion module
•
Analog input/output
Mixed Analog I/O Module
Quickly incorporate analog signals in your
small-scale control systems with the
CPM1A-MAD01 module. Featuring 2 analog
inputs/1 analog output with constant moni-
toring for 'broken wire' and for +/- voltage
System Configuration Options
The CPM1A's small size lets you pack several connections and usage options into a compact panel. It is
powerful enough to support up to 100 I/O, offer multiple control options, and connectivity to several
different devices including bar code readers, operator interfaces, process and temperature controllers, etc.
The CPM1A connects
directly to a PC using an
RS-232C adapter. You can
download programs, transfer
data, and
monitor the
status of the
CPM1A from
your PC.
1:N Communications
allows multiple
CPM1As to connect
to a PC via a link
CIF11
adapter and RS-422
adapters. You can
monitor, control and
RS-422
program up to 32
PLCs from a remote
location.
Item
RS-232C Adapter (Cable)
RS-232C Adapter (DIN)
RS-422 Adapter
Link Adapter
RS-422 Adapter (DIN)
Item
RS-232C Cable
RS-232C Cable
Item
Programming console
Programming console
Connecting cable
Connecting cable
Connect any
Operator Interface
Terminal with an
RS-232C adapter.
With this connection,
you can monitor the
process or interface
with the CPM1A directly.
CIF01
RS-232
Adapters
Description
Converts Peripheral port to RS-232C level / Cable 3.3 m
Converts Peripheral port to RS-232C level / DIN Mount
Converts RS-232C port to RS-422A (Requires 5VDC power supply)
Converts RS-422 to RS-232C
Converts Peripheral port to RS-422A / DIN Mount
Connecting Cables
Description
RS-232C to RS-232C / PLC communication (2 m)
RS-232C to RS-232C / PC connection for program download (2 m)
Peripheral Devices
Description
Handheld programming console with 2 m cable attached
Handheld programming console with back light (Cable not included)
Connects C200H programming console to peripheral port (2 m)
Connects C200H programming console to peripheral port (4 m)
Expansion I/O increases the CPM1A's usefulness in solving your
applications. Expand up to three modules (up to 100 I/O points total)
including a mix of relay, transistor (NPN or PNP) or, analog input and
output points all connected via simple ribbon cable connections.
CIF01
RS-232
1:1 Link connects a CPM1A to
another CPM1A or any other
Omron PLC, allowing the linked
PLCs to communicate directly
and seamlessly share data.
Use a handheld programmer
to program and download
information directly to the
CPM1A via its peripheral port.
Using the CPM1A-
SRT21 adapter, the
CPM1A can operate
as a slave on a
CompoBus/S
network and use up
to 8 outputs and 8
inputs via control
of a CompoBus/S
master.
Part Number
CQM-CIF02
CPM1-CIF01
NT-AL001
3G2A9-AL004-E
CPM1-CIF11
Part Number
C200H-CN320-EU
C200HS-CN220-EU
Part Number
CQM1-PRO01-E
C200H-PRO27-E
C200H-CN222
C200H-CN4
DC IN/Relay OUT
10, 20, 30, 40 I/O
Description
# of I/O
Input
Output
10 I/O Points
6
20 I/O Points
12
30 I/O Points
18
32 I/O Points
20
40 I/O Points
24
*Indicates CE mark
Description
# of I/O
Input
8 Input Points
8
8 Output Points
0
20 I/O Points
12
Analog I/O
2
*Indicates CE mark
Item
CPM1A-chiever Kit
Item
CompoBus/S
I/O Adapter
Item
SYSWIN
CX-Programmer
AC IN/Relay OUT 20 or 32 I/O
CPM1A Ordering Guide
Input Type
4
DC
8
DC
AC
12
DC
12
AC
16
DC
CPM1A Expansion Modules
Input Type
Output
0
DC
8
N/A
8
DC
1
0 to 10 V
1 to 5 V
4 to 20 mA
CPM1A-chiever Kits
Description
20 I/O CPU; DC IN/Relay Out; DC power supply and accessories
20 I/O CPU; DC IN/Relay Out; AC power supply and accessories
/S I/O Link
Description
Operates as a CompoBus/S slave and provides 8 inputs and
8 outputs to the CPM1A or CPM2A PC
Programming Software
Description
SYSWIN V3.3 CD-ROM
CX-Programmer Version 1.1 CD-ROM
Output Type
Power Supply
Relay
AC
Relay
DC
Transistor (NPN)
Transistor (PNP)
Relay
AC
Relay
DC
Transistor (NPN)
Transistor (PNP)
Relay
AC
Relay
AC
Relay
DC
Transistor (NPN)
Transistor (PNP)
Relay
AC
Relay
AC
Relay
DC
Transistor (NPN)
Transistor (PNP)
Output Type
Power Supply
N/A
N/A
Relay
Transistor
Transistor (PNP)
Relay
N/A
Transistor (NPN)
Transistor (PNP)
0 to 10 V
N/A
-10 to +10 V
4 to 20 mA
