Product Detail

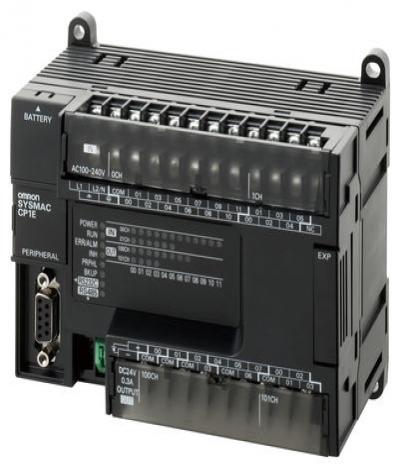

CP1E

Cost-effective CP1E with Enhanced Expandability for Analog and Temperature Control

Product Brief Description

CP1E-E14SDR-A

CP1E-E20SDR-A

CP1E-E30SDR-A

CP1E-E40SDR-A

CP1E-E60SDR-A

CP1E-E10DR-A

CP1E-E10DT-A

CP1E-E10DT1-A

CP1E-E10DR-D

CP1E-E10DT-D

CP1E-E10DT1-D

CP1E-E14DR-A

CP1E-E20DR-A

CP1E-E30DR-A

CP1E-E40DR-A

CP1E-N30S1DR-A

CP1E-N30S1DT-D

CP1E-N30S1DT1-D

CP1E-N40S1DR-A

CP1E-N40S1DT-D

CP1E-N40S1DT1-D

CP1E-N60S1DR-A

CP1E-N60SDT-D

CP1E-N60SDT1-D

CP1E-N14DR-A

CP1E-N14DT-A

CP1E-N14DT1-A

CP1E-N14DR-D

CP1E-N14DT-D

CP1E-N14DT1-D

CP1E-N20DR-A

CP1E-N20DT-A

CP1E-N20DT1-A

CP1E-N20DR-D

CP1E-N20DT-D

CP1E-N20DT1-D

 CP1E-N30DR-A

CP1E-N30DT-A

CP1E-N30DT1-A

CP1E-N30DR-D

CP1E-N30DT-D

CP1E-N30DT1-D

CP1E-N40DR-A

CP1E-N40DT-A

CP1E-N40DT1-A

CP1E-N40DR-D

CP1E-N40DT-D

CP1E-N40DT1-D

CP1E-N60DR-A

CP1E-N60DT-A

CP1E-N60DT1-A

CP1E-N60DR-D

CP1E-N60DT-D

CP1E-N60DT1-D

 CP1E-NA20DR-A

CP1E-NA20DT-D

CP1E-NA20DT1-D

CP1W-BAT01

CP1W-CIF01

CP1W-CIF11

CP1W-CIF12

CP1W-CIF41

CP1W-ADB21

CP1W-DAB21V

CP1W-MAB221

CP1W-8ED

CP1W-8ER

CP1W-8ET

CP1W-8ET1

CP1W-16ER

CP1W-16ET

CP1W-16ET1

CP1W-32ER

CP1W-32ET

CP1W-32ET1

CP1W-32ET

CP1W-32ET1

CP1W-20EDR1

CP1W-20EDT

CP1W-20EDT1

CP1W-40EDR

CP1W-40EDT

CP1W-40EDT1

CP1W-AD041

CP1W-AD042

CP1W-DA021

CP1W-DA041

CP1W-DA042

CP1W-MAD44

CP1W-MAD42

CP1W-MAD11

CP1W-TS001

CP1W-TS002

CP1W-TS101

CP1W-TS102

CP1W-TS003

CP1W-TS004

CP1W-SRT21

CP1W-CN811

PFP-50N

PFP-100N

PFP-100N2

PFP-M







Cost-Effective, Easy Application, Application to Many Systems

Exceptional Cost

Responding to Global Competition with More Device Control Possibilities

The CP1E provide high cost performance to further reduce costs by allowing you to select the optimal CPU Unit from the E[][]S-type Basic Models or N/[][]S(1)-type Application Models.

Windows is registered trademarks of Microsoft Corporation in the USA and other countries.
Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.

Simple and User Friendly

Intuitive control with “Smart Input.”

Easy to use input editor with smart input function [All Models]

When you begin typing an instruction from the keyboard in Ladder Editor Mode,suggested instructions are displayed and the addresses are automatically entered.
Connecting lines are added automatically based on the cursor position, enabling intuitive ladder programming.

Easy Input Editor

Instruction and Address Input Assist Functions

CP1E Features 8

When you begin typing an instruction from the keyboard while in the Ladder Editor Window, suggested instructions are displayed. All you have to do is select the instruction from the list for easy input even if you do not remember the entire mnemonic.

Address Incrementing

CP1E Features 9

The address of the next operand, including input bits and output bits, is incremented by one and displayed as the default. This enables easily inputting consecutive addresses.

User-friendly Ladder Program Input

Automatic Connecting Line Insertion

CP1E Features 11

With the automatic connecting line insertion function the necessary connection is added automatically based on the curser position.

Automatic Column Insertion When Inserting Instructions

CP1E Features 12

The column is automatically inserted when an instruction is added even if the curser is above another instruction.

Easy to reuse ladder programming

Copying with Address Incrementing

CP1E Features 14

To create the same group of ladder instructions more than once with the address addition copy function, the instructions can be reused simply by inputting an address offset.

Intuitive Menu Structure

Intuitive Menu Display

CP1E Features 16

An intuitively designed menu structure makes it easy to see the overall system simply by looking at the menu for smooth operation without referring to a manual.

Only commercially available USB cables required [All Models]

All CP1E CPU Units use high-speed USB for the peripheral port. Support software (computers) can be connected using commercially available USB cables. Without the need for USB conversion cables or special cables, connection is easier and cable cost is low.

CP1E Features 17

The depth of CPU Units with RS-232C connectors is reduced by 20 mm [Renewal type]

6 mm slimmer than the normal type.

CP1E Features 18

Efficient and Effective

Flexibly handle even small-scale systems.
Various Option Units available for increased expandability.

More Applications with AdvancedControl Capabilities and Functionality [Application Models]

The Application Models (CP1E-N[][]/N[][]S(1)) are equipped with high-speed counters, pulse outputs, and a built-in serial port(s).
In addition, using the Expansion Unit and Option Board, you can control a wide range of devices.

Pulse Outputs [Models with transistor Output]

Two 100kHz pulse outputs for high-precision position control.

CP1E Features 21

High-speed Counters*

Control multiple axes with one PLC using the two 100kHz and four 10kHz, single-phase high-speed counters.
* The Basic Models are equipped with six 10kHz, single-phase high-speed counters.

Modbus-RTU easy master

Specify Inverter speeds via RS-485

CP1E Features 23

Analog I/O Control

High-accuracy analog I/O control with a resolution 1/12,000.
You can add up to 4 analog I/O by mounting an Analog Option Board and up to 24 analog I/O by connecting Expansion Units.

CP1E Features 24

Temperature Control

The combination of the Temperature Input Unit with the PID instructions enables temperature control.
Up to 12 thermocouple inputs per Unit for CP1W-TS004.

CP1E Features 25

The CP1W-TS003 has two inputs that can be used for temperature sensor or analog inputs.
Both temperature sensor and analog inputs can be achieved with only one Unit.

CP1E Features 26

Serial PLC Links

Link data with up to 10 words between up to nine CP1E-N CPU Units when controlling a device with multiple CP1E-N PLCs.

CP1E Features 27

Ethernet Communications

Mount a CP1W-CIF41 Ethernet Option Board to an option board slot on the CP1E-N/NA type CPU Unit.
Perform monitoring and programming with CX-Programmer,or communicate with a host computer via Ethernet.(server function only)

CP1E Features 28

Optional units for more flexibility

An option board for an additional Serial or Ethernet communication port can be added to the N30/40/60 and NA20 CPU Unit. Three expansion units are available.
* The Option Board cannot be mounted to the CP1E-N□□S/N□□S1.

CP1E Features 29
