Product Detail

NB3Q-TW01B

NB SERIES NB3Q-TW001B

Product Brief Description

Product Details

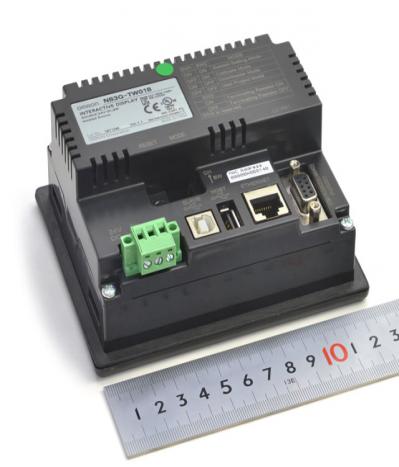

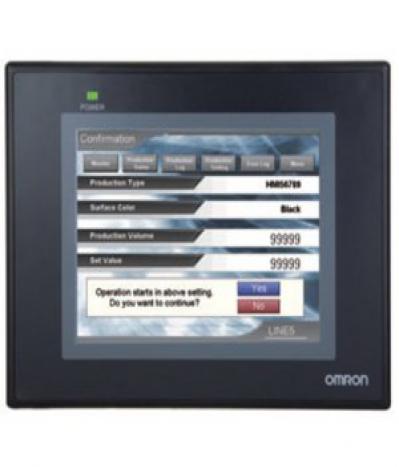

NB3Q Series HMI

The smallest screen size of the NB HMI series comes with a TFT LCD screen and a resolution of 320 x 240 pixels. A perfect size when space is limited and ideal when only a few screens with buttons, texts and values are sufficient to operate and monitor the process.

There are two different models where the top model is equipped with an Ethernet and USB host port to make it easy to update the project or exchange data over a network.

Touch Screen Panel 3.5 inches with 65536 colours
Long-life LED backlight
128 MB internal memory
IP65 protection
USB memory stick support
Vector and bitmap graphics

Omron NB Series

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
Manufacturer Series NB
Display Type TFT LCD
Display Size 3.5 in
Display Resolution 320 x 240pixels
Display Colour Colour
Number of Ports 3
Port Type Ethernet, RS-232C, USB Host
Onboard Memory 128 MB
Backlighting Yes
Supply Voltage 20.4 → 27.6 V dc
Minimum Operating Temperature 0°C
Width 103.8mm
Dimensions 128.8 x 103.8 x 52.8 mm
Maximum Operating Temperature +50°C
IP Rating IP65
Length 128.8mm
Depth 52.8mm
