Product Detail

MT6101 IP

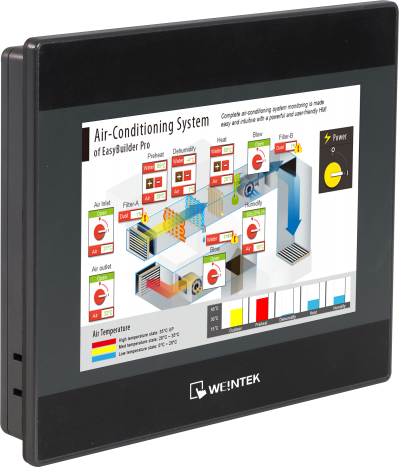

WEINTEK MT6103IP

Product Brief Description

Display : 7"TFT

Resulotion : 800 x 480

Brightness (cd/m2) : 350

Contrast Ratio: 500:1

Backlight Type : LED

Backlight Life Time : >30.000 hr

Colors : 16M

Type : 4-wire Resistive type

Accuracy: Active area leght (x) +- 2% , Width (Y) +-2%

Storage 128MB

RAM 128MB

Processor : Cortex A8 32Bit RISC 600MHz Processor

USB Host: USB 2.0 x 1

Ethernet : 1 RJ45 port (10/100 Base-T)

COM Port: Com1 : RS-232/RS-485 2w/4w Com3 : RS-485 2w

RTC Built in

Input Power: 24+- 20% VDC

Power Consumption: 350mA @24VDC

Voltase Resistance : 500VAC (1 min)

Isolation Resistance : Exceed 500Mn at 500VDC

Vibration Endurance : 10 to 25Hz (X,Y,Z direction 2G 30 minuts)

Enclosure: Plastic

Dimensions WxHxD : 200.3 x 146.3 x 34 mm

Panel Cotout 192x 138mm

Weight Approx 0.6k9

Softawre: EasyBuilder Pro V3.00.01 or later versions
