Product Detail

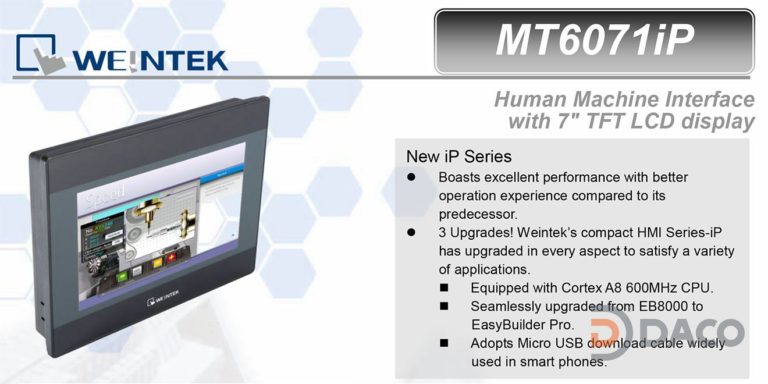

MT6071IP

IP SERIES MT 6071IP

Product Brief Description

Display 7" TFT LCD
Resolution 800 x 480
Flash 128MB
RAM 128MB
Processor 32 Bits RISC Cortex-A8 600MHz
2.0 x 1 USB Host
2.0 x 1 USB Client ( Micro USB )
COM1: RS-232, COM2: RS-485
Built-in RTC
24 VDC Power Input

Display



Display: 7" TFT LCD

Resolution: 800X480

Brightness: 300

Contrast Ratio: 500:1

Backlight Type: LED

Backlight Life Time: >30,000hrs.

Colors: 16M

LED Viewing Angle(T/B/L/R): 70/50/70/70

Touch Panel

Type: 4-wire Resistive Type

Accuracy: Active Area Length(X)±2%,width(Y)±2%

Memory

Flash: 128MB

RAM:128MB

Processor 32 bits RISC Cortex-A8 600MHz
I/O Ports

USB Host: USB2.0X1

USB Client: USB 2.0X1(Micro USB)

Ethernet: N/A

COM Port: COM1:RS-232

                COM2:RS-485 2W/4W

RTC Built-in
Power

Input Power: 24±20%VDC

Power Isolation: Built-in

Power Consumption: 500mA@24VDC

Voltage Resistance: 500VAC(1 min.)

Isolation Resistance: Exceed 50MΩ at 500VDC

Vibration Endurance: 10 to 25Hz(X,Y,Z direction 2G 30 minutes)

Specification

PCB Coating: N/A

Enclosure: Plastic

Dimensions WxHxD: 200.4X146.5X34mm

Panel Cutout: 192X138mm

Weight: Approx. 0.52 kg

Mount: Panel mount

Environment

Protection Structure: NEMA4/IP65 Compliant Front Panel

Storage Temperature: -20°~60°C(-4°~140°F)

Operating Temperature: 0°~50°C(32°~122°F)

Relative Humidity: 10%~90%(non-condensing)

Software EasyBuilder Pro
