CJ1W

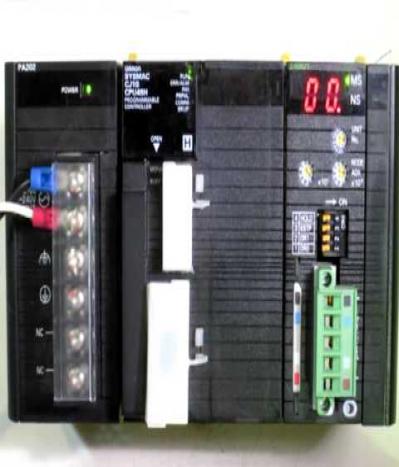

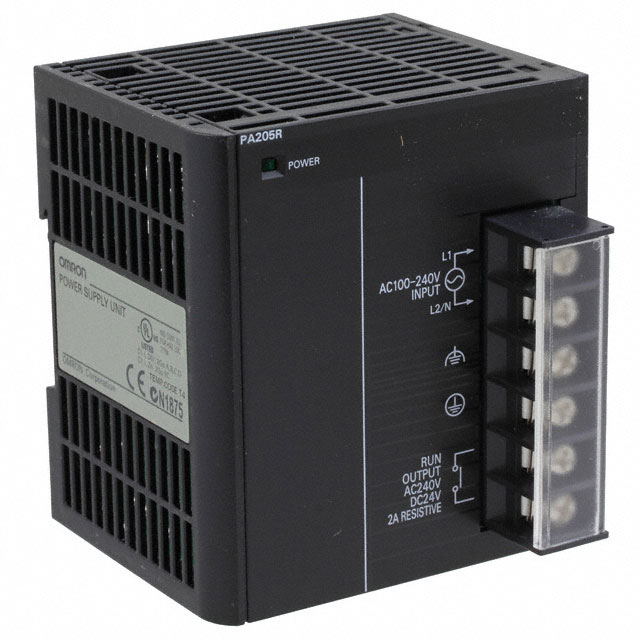

PLC OMRON CJ1W

Product Brief Description

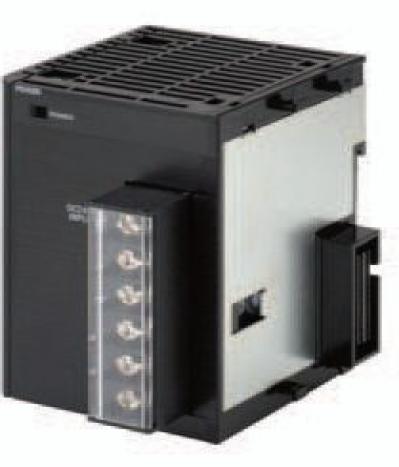

Analog Input Units

Input up to eight analog signals with one Unit.

Functions include line disconnection detection, averaging, peak value holding, offset/gain adjustment, and scaling. (Offset/gain adjustment is not supported by the CJ1W-AD042. Scaling is supported only by the CJ1W-AD042.)

High-speed A/D conversion in 20 μs/point with direct conversion function * (CJ1W-AD042 only).

Analog Output Units

Output up to eight analog signals with one Unit.

Functions include output holding, offset/gain adjustment, and scaling. (Offset/gain adjustment is not supported by the CJ1W-DA042V. Scaling is supported only by the CJ1W-DA08V/DA08C/DA042V.)

High-speed D/A conversion in 20 μs/point with direct conversion function * (CJ1W-DA042V only).

Analog I/O Units

Input up to four analog signals and output up to two analog signals with one Unit.

Functions include line disconnection detection, input averaging, scaling, input peak value holding, output holding, ratio conversion, and offset/gain adjustment.



* Direct Conversion Instructions for High-speed type can be used to create a consistent response time from input through
   data processing and output. With the Machine Automation Controller NJ-series, the direct conversion function cannot be
   used. This function is supported only by the CJ-series CPU Unit.
1 Do not apply a voltage higher than 600 V to the terminal block when performing withstand voltage test on this Unit.
      Otherwise, internal elements may deteriorate.
*2 Input signal ranges can be set for each input.
*3 Voltage input or current input are chosen by using the voltage/current switch at the back of the terminal block.
*4 To use a current input, connect the positive current input terminal and positive voltage input terminal with the enclosed
      short bar.
*5 The Analog Input Unit must be operated according to the input specifications provided here. Operating the Unit outside
      these specifications will cause the Unit to malfunction.
*6 The resolution can be set to 8,000 and the conversion period to 250 μs in the setting. There is only one setting for both
      of these, i.e., they are both enabled or disabled together.
*7 The accuracy is given for full scale. For example, an accuracy of ±0.2% means a maximum error of ±8 (BCD) at a
      resolution of 4,000.
      For the CJ1W-AD041-V1/ AD081-V1, the default setting is adjusted for voltage input. To use current input, perform the
      offset and gain adjustments as required.
*8 For the CJ1W-AD041-V1/ AD081-V1, 23±2°C.
*9 The A/D conversion period is the time required from when the Analog Input Unit receives the analog signal until it
      stores the converted value in internal memory. It takes at least one cycle for the converted data to be stored in the
      CPU Unit. (The direct conversion function of the CJ1W-AD042 is can be used to input data immediately to the CPU
      Unit.)
*10 Line disconnection detection is supported only when the range is set to 1 to 5 V or 4 to 20 mA. If there is no input
        signal when the 1 to 5 V or 4 to 20 mA range is set, the Line Disconnection Flag will turn ON.

TYPE CJ1W ;

CJ1W-DA042V
CJ1W-DA08V
CJ1W-DA08C
CJ1W-DA041

CJ1W-DA021

CJ1W-MAD42

CJ1W-PDC15

CJ1W-TC001

CJ1W-TC002

CJ1W-TC003
CJ1W-TC004
CJ1W-TC101

CJ1W-TC102
CJ1W-TC103
CJ1W-TC104
CJ1W-NC214

CJ1W-NC414

CJ1W-NC234

CJ1W-NC434

CJ1W-NC113

CJ1W-NC213

CJ1W-NC413

CJ1W-NC133

CJ1W-NC233

CJ1W-NC433

CJ1W-SP001

CJ1W-CT021

CJ1W-V680C11

CJ1W-V680C12
CJ1W-SRM21

CJ1W-AD04U

CJ1W-PH41U
