Product Detail

CP1L

Product Brief Description

CATALOG ;http://www.otomasyonline.com/download/Omron/PRODUCT%20CATALOGUE-FULL.pdf

rogrammable Controllers

type :
CP1L-EM40DR-D
CP1L-EM40DT-D
CP1L-EM40DT1-D
CP1L-EM30DR-D
CP1L-EM30DT-D
CP1L-EM30DT1-D
CP1L-EL20DR-D
CP1L-EL20DT-D
CP1L-EL20DT1-D
CP1L-M60DR-A
CP1L-M60DT-A
CP1L-M60DR-D
CP1L-M60DT-D
CP1L-M60DT1-D
CP1L-M40DR-A
CP1L-M40DT-A
CP1L-M40DR-D
CP1L-M40DT-D
CP1L-M40DT-1D
CP1L-M30DR-A
CP1L-M30DT-A
CP1L-M30DR-D
CP1L-M30DT-D
CP1L-M30DT1-D
CP1L-L20DR-A
CP1L-L20DT-A
CP1L-L20DR-D
CP1L-L20DT-D
CP1L-L20DT1-D
CP1L-L14DR-A
CP1L-L14DT-A
CP1L-L14DR-D
CP1L-L14DT-D
CP1L-L14DT1-D
CP1L-L10DR-A
CP1L-L10DT-A
CP1L-L10DR-D
CP1L-L10DT-D
CP1L-L10DT1-D
CP1W-CIF01
CP1W-CIF011
CP1W-CIF012
CP1W-CIF41
CP1W-ADB21
CP1W-DAB21V
CP1W-MAB221
CP1W-DAM01
CP1W-ME05M
CXONE-LT01D-V4
CXONE-AL01D-V4
XW2Z-200S-CV
XW2Z-500S-CV
XW2Z-500S-V
CS1W-CIF31
CP1W-8ED
CP1W-8ER
CP1W-8ET
CP1W-8ET1
CP1W-16ER
CP1W-16ET
CP1W-16ET1
CP1W-32ER
CP1W-32ET
CP1W-32ET1
CP1W-20EDR1
CP1W-20EDT
CP1W-20EDT1
CP1W-40EDR
CP1W-40EDT
CP1W-40EDT1
CP1W-AD041
CP1W-AD042
CP1W-DA021
CP1W-DA041
CP1W-DA042
CP1W-MAD44
CP1W-MAD42
CP1W-TS001
CP1W-TS002
CP1W-TS101
CP1W-TS102
CP1W-TS003
CP1W-TS004
CP1W-SRT21
CP1W-CN811
CJ1W-BAT01
PFP-50N
PFP-100N
PFP-100N2
PFP-M
W4S1-03B
W4S1-05B
W4S1-05C


Programmable Logic Controllers, along with easy-to-use Support Software, are available to flexibly handle applications from small-scale equipment to entire production lines with Programmable Logic Controllers such as those in the CJ1, CS1 and other series.

"CP1L-EM" and "CP1L-EL" have complete with a Ethernet port.

Pulse output for two axes. Advanced power for high-precision positioning control.

High-speed Counters. Single-phase for four axes.

Six interrupt inputs are built in. Faster processing of instructions speeds up the entire system.

Serial Communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.

"CP1L-M" and "CP1L-L" have a peripheral USB port.

The Structured Text (ST) Language. Makes math operations even easier.

Can be used for the CP1W series Unit. The extendibility of it is preeminently good.

General Specifications



TypeAC power supply modelsDC power supply models
ModelCP1L-[][][]-ACP1L-[][][]-D
Power supply 100 to 240 VAC 50/60 Hz 24 VDC
Operating voltage
range
85 to 264 VAC 20.4 to 26.4 VDC
Power consumption 50 VA max. (CP1L-M60/-M40/-M30[][]-A)
30 VA max. (CP1L-L20/-L14/-L10[][]-A)
20 W max. (CP1L-EM40/-EM30/-M60/-M40/
-M30[][]-D)
13 W max. (CP1L-EL20/-L20/-L14/
-L10[][]-D)
Inrush current * 100 to 120 VAC inputs:
20 A max. (for cold start at room
temperature)
8 ms max.
200 to 240 VAC inputs:
40 A max. (for cold start at room
temperature),
8 ms max.
30 A max. (for cold start at room
temperature)
20 ms max.
External power supply 300 mA at 24 VDC (CP1L-M60/-M40/
-M30[][]-A)
200 mA at 24 VDC (CP1L-L20/-L14/
-L10[][]-A)
None
Insulation resistance 20 MΩ min. (at 500 VDC) between the
external AC terminals and GR terminals
No insulation between primary and secondary
for DC power supply
Dielectric strength 2,300 VAC at 50/60 Hz for 1 min between
the external AC and GR terminals, leakage
current: 5 mA max.
No insulation between primary and secondary
for DC power supply
Noise immunity Conforms to IEC 61000-4-4. 2 kV (power supply line)
Vibration resistance CP1L-L/M:
Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration:
9.8 m/s2 in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes × 10 sweeps
= total time of 80 minutes)
CP1L-EL/EM:
5 to 8.4 Hz, 3.5 mm amplitude, 8.4 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions
for 100 minutes each (time coefficient of 10 minutes × coefficient factor of 10 = total time
of 100 minutes)
Shock resistance Conforms to JIS C60068-2-27. 147 m/s2 three times each in X, Y, and Z directions
Ambient operating
temperature
0 to 55°C
Ambient humidity 10% to 90% (with no condensation)
Ambient operating
environment
No corrosive gas
Ambient storage
temperature
-20 to 75°C (Excluding battery.)
Power holding time 10 ms min. 2 ms min.

* The above values are for a cold start at room temperature for an AC power supply, and for a cold start for a DC power
    supply.
    • A thermistor (with low-temperature current suppression characteristics) is used in the inrush current control circuitry
        for the AC power supply. The thermistor will not be sufficiently cooled if the ambient temperature is high or if a hot
        start is performed when the power supply has been OFF for only a short time. In those cases the inrush current
        values may be higher (as much as two times higher) than those shown above. Always allow for this when selecting
        fuses and breakers for external circuits.
    • A capacitor charge-type delay circuit is used in the inrush current control circuitry for the DC power supply. The
        capacitor will not be charged if a hot start is performed when the power supply has been OFF for only a short time,
        so in those cases the inrush current values may be higher (as much as two times higher) than those shown above.

Performance Specifications

CP1L CPU Unit (EM/EL Type)



TypeCP1L-EM40 (40 points)CP1L-EM30 (30 points)CP1L-EL20 (20 points)
ModelsCP1L-EM40D[]-[]CP1L-EM30D[]-[]CP1L-EL20D[]-[]
Control method Stored program method
I/O control method Cyclic scan with immediate refreshing
Program language Ladder diagram
Function blocks Maximum number of function block definitions: 128 Maximum number of instances: 256
Languages usable in function block definitions: Ladder diagrams, structured text (ST)
Instruction length 1 to 7 steps per instruction
Instructions Approx. 500 (function codes: 3 digits)
Instruction execution time Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min.
Common processing time 0.4ms
Program capacity 10K steps 5K steps
 FB program
memory
10K steps
Number of tasks 288 (32 cyclic tasks and 256 interrupt tasks)
 Scheduled
interrupt tasks
1 (interrupt task No. 2, fixed)
Input interrupt
tasks
6 (interrupt task No. 140 to 145, fixed)
(High-speed counter interrupts and interrupt tasks specified by external interrupts can
also be executed.)
Maximum subroutine
number
256
Maximum jump number 256
I/O
areas
Input Area 1,600 bits (100 words) CIO 0 to CIO 99
  Built-in Input
Area
24 bits: CIO 0.00 to CIO
0.11 and CIO 1.00 to CIO
1.11
18 bits: CIO 0.00 to CIO
0.11 and CIO 1.00 to CIO
1.05
12 bits: CIO 0.00 to CIO 0.11
Output Area 1,600 bits (100 words) CIO 100 to CIO 199
  Built-in Output
Area
16 bits: CIO 100.00 to CIO
100.07 and CIO 101.00 to
CIO 101.07
12 bits: CIO 100.00 to CIO
100.07 and CIO 101.00 to
CIO 101.03
8 bits: CIO 100.00 to CIO
100.07
1:1 Link Area 256 bits (16 words): CIO 3000.00 to CIO 3015.15 (CIO 3000 to CIO 3015)
Serial PLC Link
Area
1,440 bits (90 words): CIO 3100.00 to CIO 3189.15 (CIO 3100 to CIO 3189)
Work bits 4,800 bits (300 words): CIO 1200.00 to CIO 1499.15 (words CIO 1200 to CIO 1499)
6,400 bits (400 words): CIO 1500.00 to CIO 1899.15 (words CIO 1500 to CIO 1899)
15,360 bits (960 words): CIO 2000.00 to CIO 2959.15 (words CIO 2000 to CIO 2959)
9,600 bits (600 words): CIO 3200.00 to CIO 3799.15 (words CIO 3200 to CIO 3799)
37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 (words CIO 3800 to CIO 6143)
TR Area 16 bits: TR0 to TR15
Holding Area 8,192 bits (512 words): H0.00 to H511.15 (H0 to H511)
AR Area Read-only (Write-prohibited): 7168 bits (448 words): A0.00 to A447.15 (A0 to A447)
Read/Write: 8192 bits (512 words): A448.00 to A959.15 (A448 to A959)
Timers 4,096 timer numbers: T0 to T4095
Counters 4,096 counter numbers: C0 to C4095
DM Area 32 Kwords: D0 to D32767 10 Kwords: D0 to D9999,
D32000 to D32767
Data Register Area 16 registers (16 bits): DR0 to DR15
Index Register Area 16 registers (32 bits): IR0 to IR15
Task Flag Area 32 flags (32 bits): TK0000 to TK0031
Trace Memory 4,000 words (500 samples for the trace data maximum of 31 bits and 6 words.)
Memory Cassette A special Memory Cassette (CP1W-ME05M) can be mounted.
Note: Can be used for program backups and auto-booting.
Clock function Supported. Accuracy (monthly deviation): -4.5 min to -0.5 min (ambient temperature:
55°C),
-2.0 min to +2.0 min (ambient temperature: 25°C), -2.5 min to +1.5 min (ambient
temperature: 0°C)
Communications functions Built-in Ethernet Port (Connecting Support Software, Message Communications,
Socket Service)
A maximum of two Serial Communications Option
Boards can be mounted.
A maximum of one Serial
Communications Option
Board can be mounted.
Memory backup Flash memory: User programs, parameters (such as the PLC Setup), comment data,
and the entire DM Area can be saved to flash memory as initial values.
Battery backup: The Holding Area, DM Area, and counter values (flags, PV) are backed
up by a battery.
Battery service life Service life expectancy is 5 years at 25°C, less at higher temperatures. (From 0.75
to 5 years depending on model, power supply rate, and ambient temperature.)
Built-in input terminals 40 (24 inputs, 16 outputs) 30 (18 inputs, 12 outputs) 20 (12 inputs, 8 outputs)
Number of connectable
Expansion Units and
Expansion I/O Units
CP-series Expansion Unit and Expansion I/O Units:
3 max.
CP-series Expansion Units
and Expansion I/O Units:
1 max.
Max. number of I/O points 160 (40 built in + 40 per
Expansion (I/O) Unit x 3
Units)
150 (30 built in + 40 per
Expansion (I/O) Unit x 3
Units)
60 (20 built in + 40 per
Expansion (I/O) Unit x 1
Unit)
Interrupt inputs 6 inputs (Response time: 0.3 ms)
Interrupt inputs counter
mode
6 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down
counters
Quick-response inputs 6 points (Min. input pulse width: 50 μs max.)
Scheduled interrupts 1
High-speed counters 4 inputs/2 axes (24 VDC)
Differential phases (4x), 50 kHz
Single-phase (pulse plus direction, up/down, increment), 100 kHz
Value range: 32 bits, Linear mode or ring mode
Interrupts: Target value comparison or range comparison
Pulse
outputs
(models
with
transistor
outputs
only)
Pulse outputs Trapezoidal or S-curve acceleration and deceleration (Duty ratio: 50% fixed)
2 outputs, 1 Hz to 100 kHz (CCW/CW or pulse plus direction)
PWM outputs Duty ratio: 0.0% to 100.0% (specified in increments of 0.1% or 1%)
2 outputs, 0.1 to 6553.5 Hz or 1 to 32,800 Hz
(Accuracy: +1%/0% at 0.1 Hz to 10,000 Hz and +5%/0% at 10,000 Hz to 32,800 Hz)
Analog input 2 input (Resolution: 1/1000, Input range: 0 to 10 V). Not isolated.

CP1L CPU Unit (M/L Type)

CPU Units

CP1L-EM CPU Units with 40 Points

CP1L Dimensions 2

CP1L-EM CPU Units with 30 Points

CP1L Dimensions 3

CP1L-EL CPU Units with 20 Points

CP1L Dimensions 4

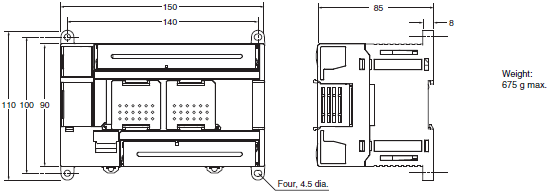

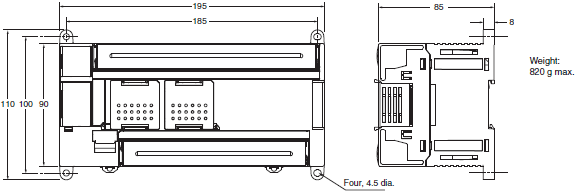

CP1L CPU Units with 60 I/O Points

CP1L Dimensions 5

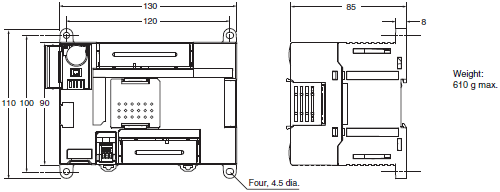

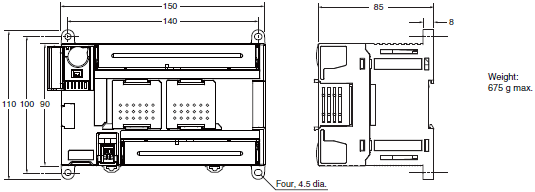

CP1L CPU Units with 40 I/O Points

CP1L Dimensions 6

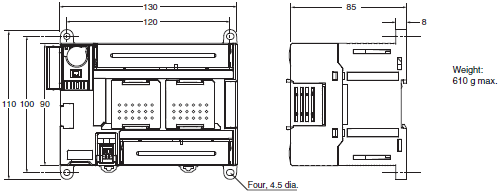

CP1L CPU Units with 30 I/O Points

CP1L Dimensions 7

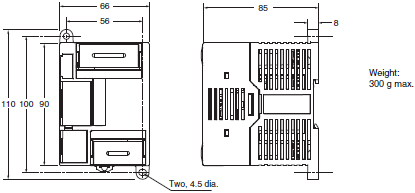

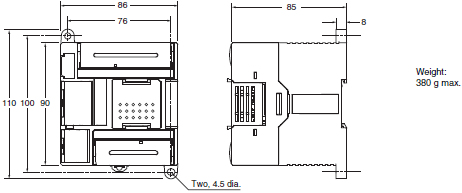

CP1L CPU Units with 14 or 20 I/O Points

CP1L Dimensions 8

CP1L CPU Units with 10 I/O Points

CP1L Dimensions 9

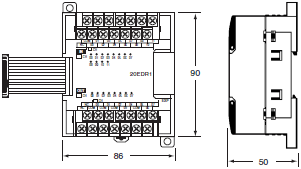

Expansion Units and Expansion I/O Units

CP1W-20ED[][], CP1W-16[][],
CP1W-AD04[], CP1W-DA021/04[],
CP1W-MAD[][], CP1W-TS[][]1/[][]2/[][]3

CP1L Dimensions 11

CP1W-8E[][]
CP1W-SRT21

CP1L Dimensions 12

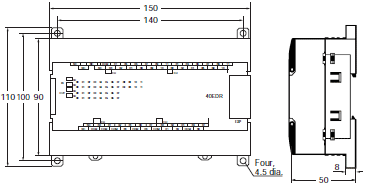

CP1W-40ED[]
CP1W-32E[][]
CP1W-TS004

CP1L Dimensions 13

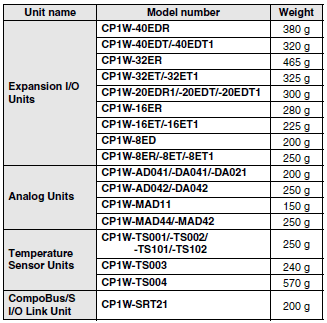

CP1L Dimensions 14

  • Catalog
Catalog Name
Catalog Number
[size]
Last Update
CP1L Data Sheet P081-E1-02
[3406KB]
Nov 01, 2016
CP1 Catalog P082-E1-04
[3728KB]
May 12, 2016
New Functions Added to CS/CJ/CP Series Catalog P097-E1-01
[1267KB]
Sep 28, 2015
FA Controller Catalog P090-E1-05
[18958KB]
Dec 01, 2016
