Product Detail

NB SERIES

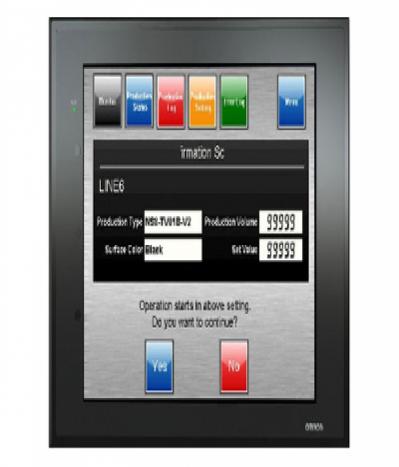

OMRON NB PROGRAMMABLE TERMINAL

Product Brief Description

PRODUK NB SERIES ;

NB3Q-TW00B

NB3Q-TW01B

NB5Q-TW00B

NB5Q-TW01B

NB7W-TW00B

NB7W-TW01B

NB10W-TW01B



Best-in-class display

NB Series Features 2

The robust TFT, color touch LCD gives excellent visibility and features long-life (50,000 hours) LED backlighting. Screen sizes range from 3.5 to 10 inches.

 • LED backlighted TFT LCD
 • Wide viewing angle
 • More than 65,000 display colors
 • Stores up to 120 MBs of screen data

Smart design

NB Series Features 3

When developing the NB series, we considered every aspect of the design to give you maximum flexibility. A typical example is the portrait or landscape display mode.

 • Portrait or landscape display mode
 • Connection to Omron and non-Omron devices, e.g. PLCs/inverters
 • Serial, USB or Ethernet connectivity
 • PictBridge printer connection

Saves you time

NB Series Features 4

The NB series has many useful features that will make it easy to create and maintain your projects, such as the USB memory stick support.

• USB memory stick support
 • Animations and easy-to-use functions
 • Multi-language support and tool
 • On/off-line simulation

Turn your idea into an application… exactly how you want it!

The NB series gives you all the features and functionality to easily create intuitive operator screens really quickly. Features such as window handling give you many screen-creation possibilities, while texts can be defined in up to 32 languages. Furthermore, off-line simulation enables you to quickly test your project.

Flexible window handling

NB Series Features 6

Your scope to create screens for your project using the familiar window concept was never greater than with the NB series. Three standard windows maximize your creative freedom:
 1) Basic for general or pop-up screens,
 2) Common for fixed or template screens and
 3) Fast Selection for menu screens.
Besides the standard window, you can also show ‘window-inwindow’ using the indirect window component. And you can manage pop-up windows using the direct window component. Furthermore, the NB series also supports bottom windows and transparency for pop-up windows.

Extensive language support

NB Series Features 7

Currently supporting 32 languages, you will find it easy to manage texts with the NB series. Thanks to the Text Library function, you can store the texts used many times in a project. Similarly, you can also store the text for a component supporting multiple states (ON/OFF), using a text for each state. And you can do this together with the font setting for each language.

Easy animation

NB Series Features 8

The NB series gives you many possibilities to create animations easily and quickly. Moving components can be created easily and in many ways. For example, you may want to show a different status with text and graphics, or showing free or trajectory movement while changing the displayed graphic. All of this can be done by simply configuring the status, X/Y coordinates and corresponding address.

Powerful Macros

NB Series Features 9

Thanks to its powerful macros, the NB series also allows you to do even more, such as perform calculations and comparisons or iterations, and mathematical functions. It also enables you to draw graphics and patterns on the NB screen, as well as writing / reading a value from or to the local memory and the memory of a connected device.

The logical choice for your machine

The feature-rich NB series has everything you will need for creating applications for a wide range machines and in many industries, for example, packaging, food, plastics and textiles. From a simple lid placing or loading/unloading machine right up to an in-line filling or sealing /labeling packaging machine. And last but not least, Omron's latest NB-Designer software can be downloaded free of charge and at any time from our website.

Always informed about alarms

NB Series Features 11

Event monitoring (alarming) is both flexible and easy to use. Not only do you have the possibility to enter bit and word alarms for on/off or on-condition triggering, there is also the possibility to use different fonts and color to indicate varying degrees of status and priorities. Specific alarms are indicated with an audible buzzer sound, as well as by an accompanying text message, and you can even create pop-up alarms for situations where immediate action has to be taken.

Easy data presentation

NB Series Features 12

Graphical representation of real-time and historical data is easy with the NB series. As well as display of time sampling and trending data, you have the option to save sampling data (max. 16 consecutive words) of basic real-time trending data. And you can plot using x/y coordinates, in which case sampling can be done via single or multiple points and with historical data. Furthermore, data can be presented in a variety of ways, such as sampling points using x and y components.

Multiple security options

NB Series Features 13

Protecting your developed project with a password using the NB series is both a simple and secure matter. Among the comprehensive security options is the possibility to define up to 16 minimum security levels on screens, buttons and inputs, and you can set up to 32 specific permission controls for each operator. There is also a register condition (bit/word) control for a check of actual condition against a predefined value, and a standard operator confirmation check to confirm that critical actions have been performed by the operator.

Direct connection with safety

NB Series Features 14

The NB series can be directly connected to Omron’s G9SP Safety Controller via RS-232C serial communications. Direct connection allows you to easily monitor details of errors that occur in the G9SP series and operation status, which contributes to reduce machine downtime. Now you do not need to create the program that was previously required for data exchange between the G9SP and HMI through PLC.

The perfect partner for CP1

NB Series Features 15

With its large range of screen sizes, ample specifications, rich functionality and proven Omron high quality, the new NB series has everything you need in a compact HMI to accompany Omron’s popular CP1 Compact Machine Controller range. The CP1 offers increasing degrees of sophistication to perfectly match your specific automation requirement and connection to the NB series is possible via Serial or Ethernet. Similarly, data transfer of recipes between HMI and PLC (with data back-up to external memory if required) is easy and the recipe screen format is freely selectable, or can be a standard table if preferred.

SpecificationsNB3QNB5QNB7WNB10W
TW00BTW01BTW00BTW01BTW00BTW01BTW01B
Display type 3.5" TFT LCD 5.6" TFT LCD 7" TFT LCD 10.1" TFT LCD
Display resolution
(H x V)
320 × 240 320 × 234 800 × 480 800 × 480
Number of colors 65,536
Backlight LED
Backlight lifetime 50,000 hours of operating time at the normal temperature (25 °C) *
Touch panel Analog resistance membrane, resolution 1024 × 1024, life: 1 million touch operations
Dimensions in mm
(H × W × D)
103.8 × 129.8 × 52.8 142 × 184 × 46 148 × 202 × 46 210.8 × 268.8 ×
54.0
Weight 300 g max. 305 g max. 620 g max. 627 g max. 710 g max. 715 g max. 1525 g max.
* This is the estimated time when the luminous intensity is decreased by 50% per LED at room temperature and humidity.
    It is a typical value.

Functionality



SpecificationsNB3QNB5QNB7WNB10W
TW00BTW01BTW00BTW01BTW00BTW01BTW01B
Internal memory 128MB (including system area)
Memory interface --- USB Memory --- USB Memory --- USB Memory USB Memory
Serial (COM1) RS-232C/422A/485
(not isolated),
Transmission distance:
15m Max. (RS-232C),
500m Max. (RS-422A/485),
Connector: D-Sub 9-pin
RS-232C,
Transmission distance: 15 m Max.,
Connector: D-Sub 9-pin
Serial (COM2) --- RS-232C/422A/485 (not isolated),
Transmission distance:
15m Max. (RS-232C), 500m Max. (RS-422A/485),
Connector: D-Sub 9-pin
USB Host Equivalent to USB 2.0 full speed, type A, Output power 5V, 150mA
USB Slave Equivalent to USB 2.0 full speed, type B, Transmission distance: 5m
Printer connection PictBridge support
Ethernet --- 10/100 base-T --- 10/100 base-T --- 10/100 base-T 10/100 base-T

General



SpecificationsNB3QNB5QNB7WNB10W
TW00BTW01BTW00BTW01BTW00BTW01BTW01B
Line voltage 20.4 to 27.6 VDC (24 VDC −15 to 15%)
Power consumption 5 W 9 W 6 W 10 W 7 W 11 W 14 W
Battery lifetime 5 years (at 25 °C) *
Enclosure rating (front side) Front operation part: IP65 (Dust proof and drip proof only from the front of the panel)
Obtained standards EC Directives, KC, cUL508
Operating environment No corrosive gases.
Noise immunity Compliant with IEC61000-4-4, 2KV (Power cable)
Ambient operating temperature 0 to 50 °C
Ambient operating humidity 10% to 90% RH (without condensation)

Note: Flash memory can be written to up 100,000 times.



Caution: All units are in millimeters unless otherwise indicated.

NB3Q

NB Series Dimensions 1

NB5Q

NB Series Dimensions 2

NB7W

NB Series Dimensions 3

NB10W

NB Series Dimensions 4
NB Series Dimensions 5
